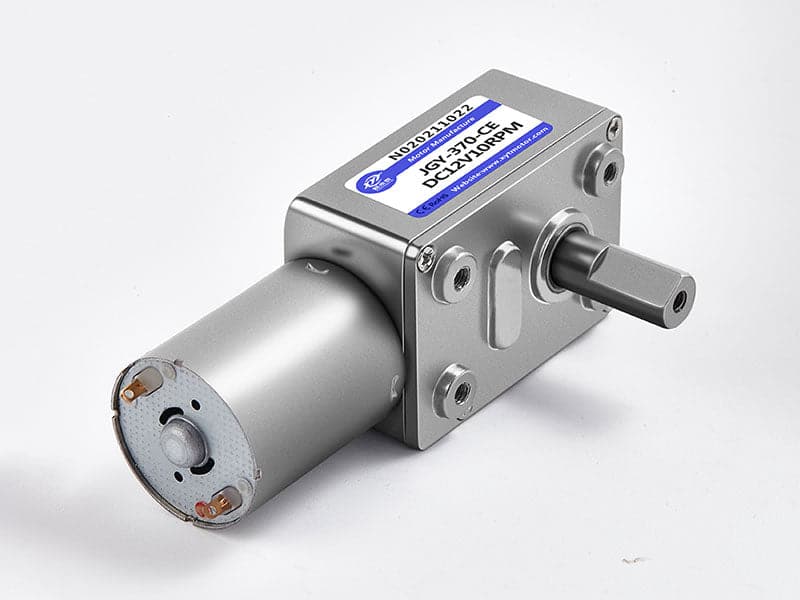

worm motor gear Motor DC 6V 12V Worm Gearbox with Encoder

worm motor gear Motor DC 6V 12V Worm Gearbox with EncoderDESCRIPTION The first step in a robotics project is to get a motor spinning. Once you've done that you quickly learn that not all motors go the same speed, even if they are the same part number! There are always variations that relate to voltage, environment, and manufacturing changes. So, the second step is to figure out how fast it's going! Turns out that's not so easy, but the best way to get started is to add an encoder wheel and an optical or

DESCRIPTION

The first step in a robotics project is to get a motor spinning. Once you've done that you quickly learn that not all motors go the same speed, even if they are the same part number! There are always variations that relate to voltage, environment, and manufacturing changes. So, the second step is to figure out how fast it's going! Turns out that's not so easy, but the best way to get started is to add an encoder wheel and an optical or magnetic counter. As the motor turns, the attached encoder wheel spins, causing the counter to detect each passing spoke and that lets your microcontroller count and determine speed.

Wiring:

• Red: Motor VCC
• Black: Encoder GND
• Yellow: Encoder A Phase
• Green: Encoder B Phase
• Blue: Encoder VCC (3.3V-5V)
• White: Motor GND

Note: Red/White can be reversed to control forward reverse rotation of motor. Black/Blue *CANNOT* be reversed. Connecting Black/Blue wrongly will permanently damage the encoder.

TECHNICAL DETAILS

Encoder

• Operating Voltage: 3.3V-5V
• Type: AB Dual Phase Incremental Magnetic Hall Encoder
• Output Signal Type: Square Wave AB
• Response Frequency: 100KHz
• Pulse Per Revolution: 11PPR

Motor

• Output Shaft Diameter: 6mm

Motor DC 6V

• Reduction Ratio: 600:1
• No Load Operating Current: 0.1A
• No Load RPM: 10 ±10%
• Rated Load Operating Current: 0.4A
• Rated Load RPM: 7 ±10%
• Rated Load Torque: 17kg
• Rated Load Power: 2.4W
• Stall Torque: 54kg
• Stall Current: 1.8A

• Reduction Ratio: 340:1
• No Load Operating Current: 0.1A
• No Load RPM: 18 ±10%
• Rated Load Operating Current: 0.4A
• Rated Load RPM: 13 ±10%
• Rated Load Torque: 12kg
• Rated Load Power: 2.4W
• Stall Torque: 34kg
• Stall Current: 1.8A

• Reduction Ratio: 150:1
• No Load Operating Current: 0.1A
• No Load RPM: 40 ±10%
• Rated Load Operating Current: 0.4A
• Rated Load RPM: 30 ±10%
• Rated Load Torque: 4.5kg
• Rated Load Power: 2.4W
• Stall Torque: 15kg
• Stall Current: 1.8A

Motor DC 12V

• Reduction Ratio: 600:1
• No Load Operating Current: 0.06A
• No Load RPM: 10 ±10%
• Rated Load Operating Current: 0.2A
• Rated Load RPM: 7 ±10%
• Rated Load Torque: 15kg
• Rated Load Power: 2.4W
• Stall Torque: 54kg
• Stall Current: 1.3A

• Reduction Ratio: 340:1
• No Load Operating Current: 0.06A
• No Load RPM: 18 ±10%
• Rated Load Operating Current: 0.2A
• Rated Load RPM: 13 ±10%
• Rated Load Torque: 12kg
• Rated Load Power: 2.4W
• Stall Torque: 34kg
• Stall Current: 1.3A

• Reduction Ratio: 150:1
• No Load Operating Current: 0.06A
• No Load RPM: 40 ±10%
• Rated Load Operating Current: 0.2A
• Rated Load RPM: 30 ±10%
• Rated Load Torque: 4.5kg
• Rated Load Power: 2.4W
• Stall Torque: 15kg
• Stall Current: 1.3A

SHIPPING LIST

• 1x Motor DC 6V 12V Worm Gearbox (with Encoder Option)
